核心设备

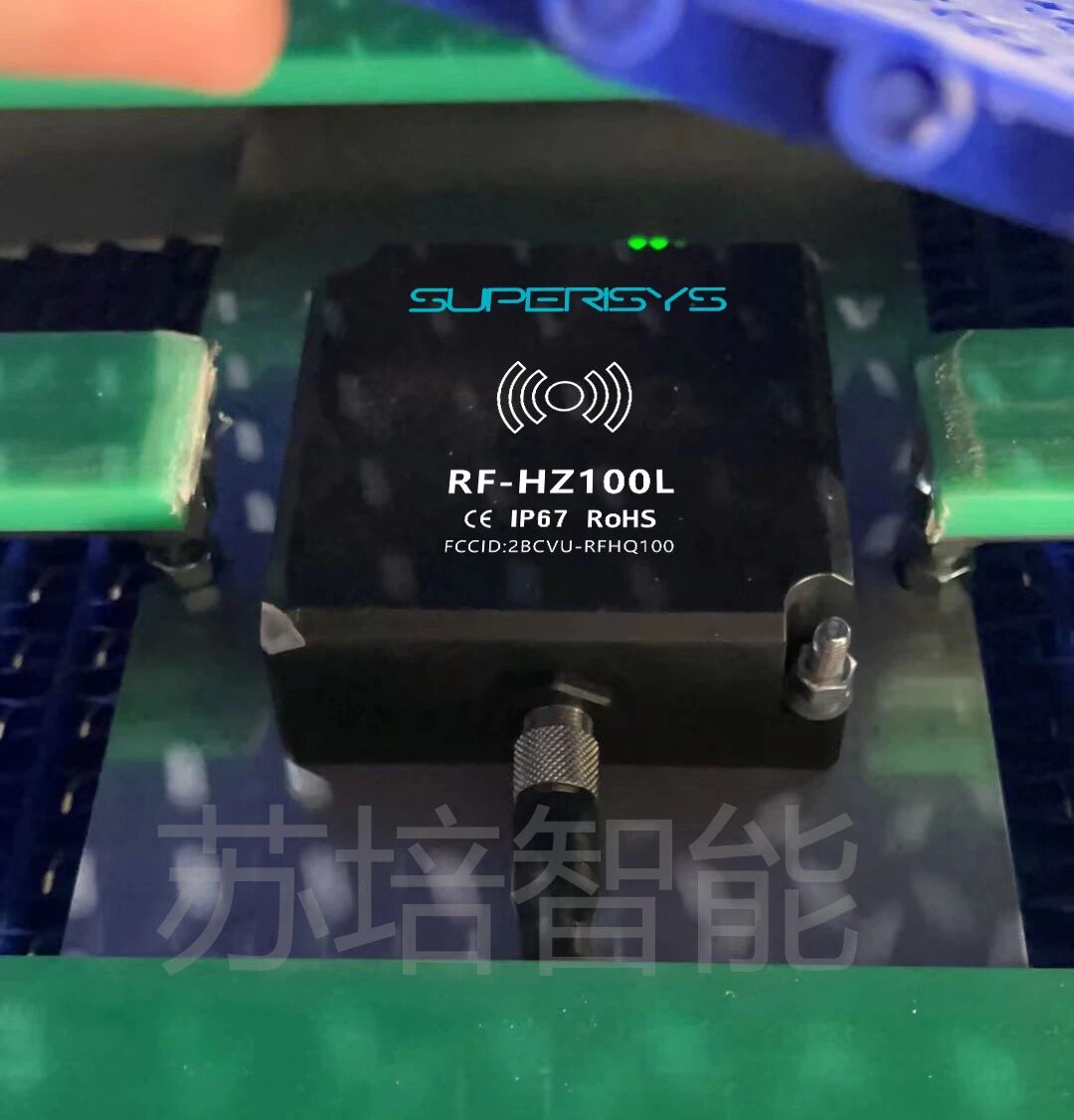

Model：RF-HZ100L

支持 RS485、以太网或 IO-Link 多种接口，兼容 MODBUS、IO-Link 标准通信协议，可轻松融入现有自动化系统，无需大规模改造生产线。

It supports multiple interfaces including RS485, Ethernet, or IO-Link, and is compatible with MODBUS and IO-Link standard communication protocols, allowing for easy integration into existing automation systems without extensive modifications to the production line;

采用 2 个 M6 螺丝孔固定，安装便捷稳固，能适应生产线的高频振动环境（满足 EN 60068-2-6 标准，5-29.5Hz 振动位移 2mm，29.5-150Hz 振动加速度 7gn）；IP67 的高防护等级（符合 EN 60529 标准），无惧菠萝加工过程中的水汽、清洗液侵蚀，在 - 25℃~+70℃的宽温环境下稳定运行，全方位适配食品生产的严苛场景。

It uses two M6 screw holes for convenient and secure installation, and can withstand the high-frequency vibration environment of the production line (meeting EN 60068-2-6 standard, 5-29.5Hz vibration displacement 2mm, 29.5-150Hz vibration acceleration 7gn);

Its high IP67 protection rating (compliant with EN 60529 standard) makes it resistant to moisture and cleaning fluids during pineapple processing, and it operates stably in a wide temperature range of -25℃ to +70℃, fully adapting to the demanding conditions of food production.

其搭载 ISO 15693/ISO 14443A 双协议，工作频率 13.56MHz，支持 26.48kbps、53kbps 双无线速率，读取性能优异且距离远，能快速精准识别标签信息，不耽误生产线流转节奏。

It features dual ISO 15693/ISO 14443A protocols, a working frequency of 13.56MHz, and supports dual wireless speeds of 26.48kbps and 53kbps, offering excellent reading performance and long reading distance, enabling fast and accurate identification of tag information without disrupting the production line flow.

配套标签

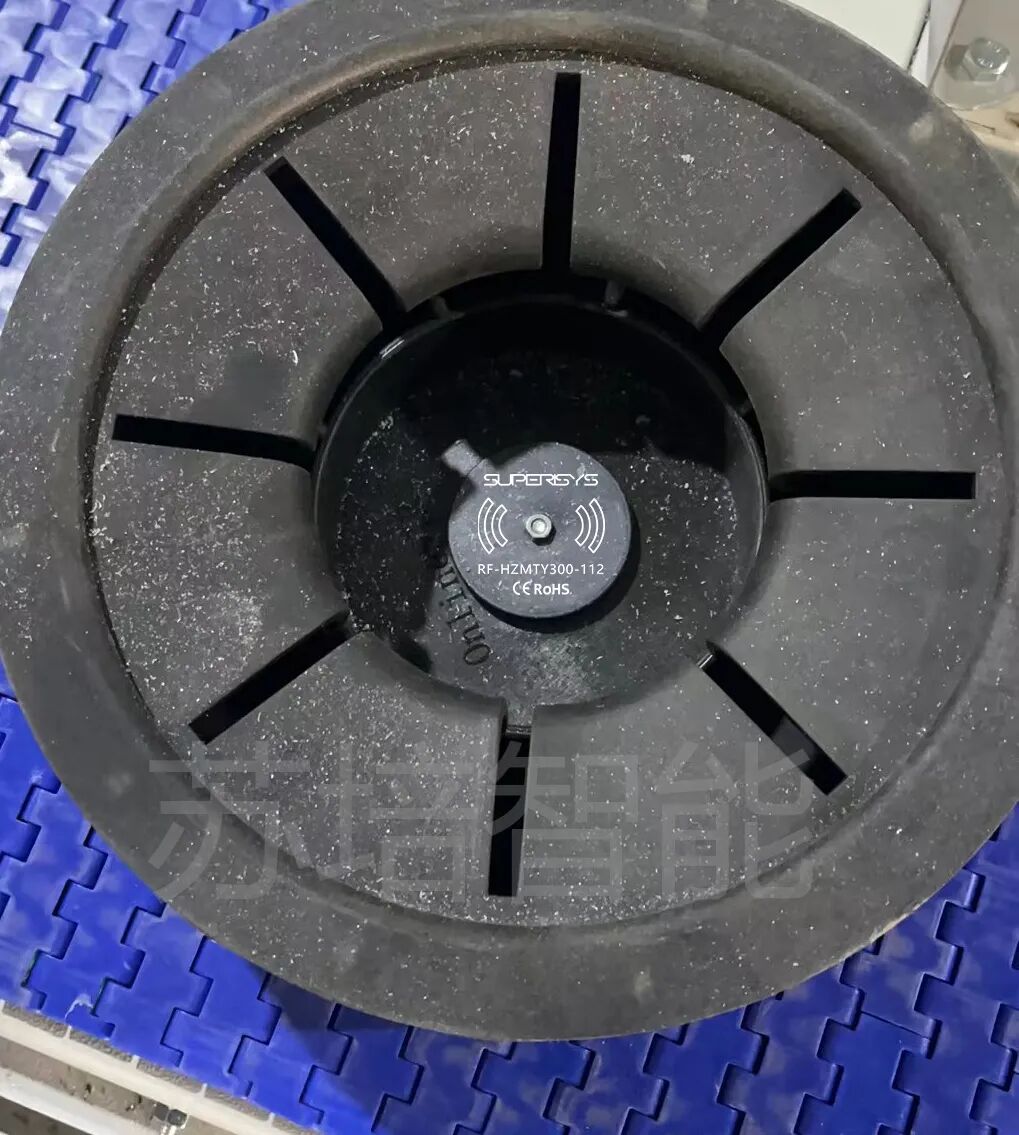

Model：RF-HZMTY300-112

采用 NXP Icode SLIX 芯片，112Bytes 用户内存可存储原料批次、生产日期、加工工序、质检结果等关键信息，满足食品生产全流程数据记录需求。

Utilizing the NXP Icode SLIX chip, the 112 Bytes of user memory can store key information such as raw material batch number, production date, processing steps, and quality inspection results, meeting the data recording needs of the entire food production process.

标签支持 ISO 15693 空口协议，适配 13.56MHz 频段，与 RF-HZ100L 读写器完美兼容，读取距离可达 0-90mm（与读写器及安装方式相关）。10 万次擦写次数搭配 10 年数据存储寿命，可反复使用且信息存储安全可靠。

The tag supports the ISO 15693 air interface protocol and is compatible with the 13.56MHz frequency band, perfectly compatible with the RF-HZ100L reader, with a reading distance of 0-90mm (depending on the reader and installation method). With 100,000 erase/write cycles and a 10-year data retention life, it can be reused repeatedly, and information storage is safe and reliable.

非金属中安装，可灵活附着在原料筐、加工设备、成品罐等载体上，螺丝固定方式确保在高速流转、清洗杀菌等工序中不易脱落。

Designed for non-metallic environments, it can be flexibly attached to raw material containers, processing equipment, finished product tanks, and other carriers. The screw fixing method ensures that it will not easily detach during high-speed movement, cleaning, and sterilization processes.

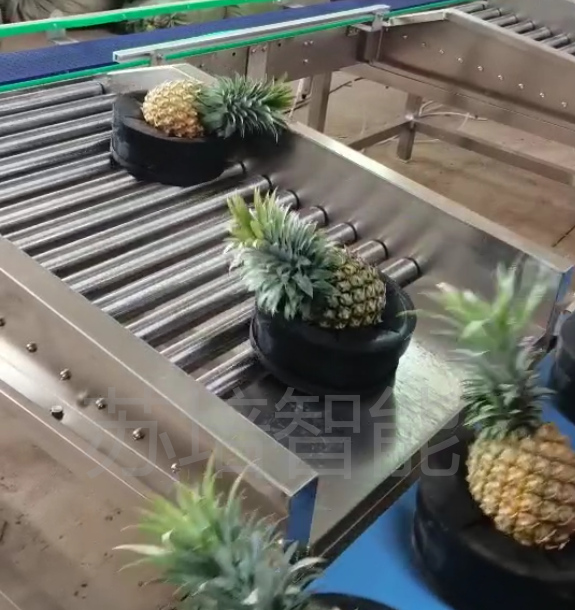

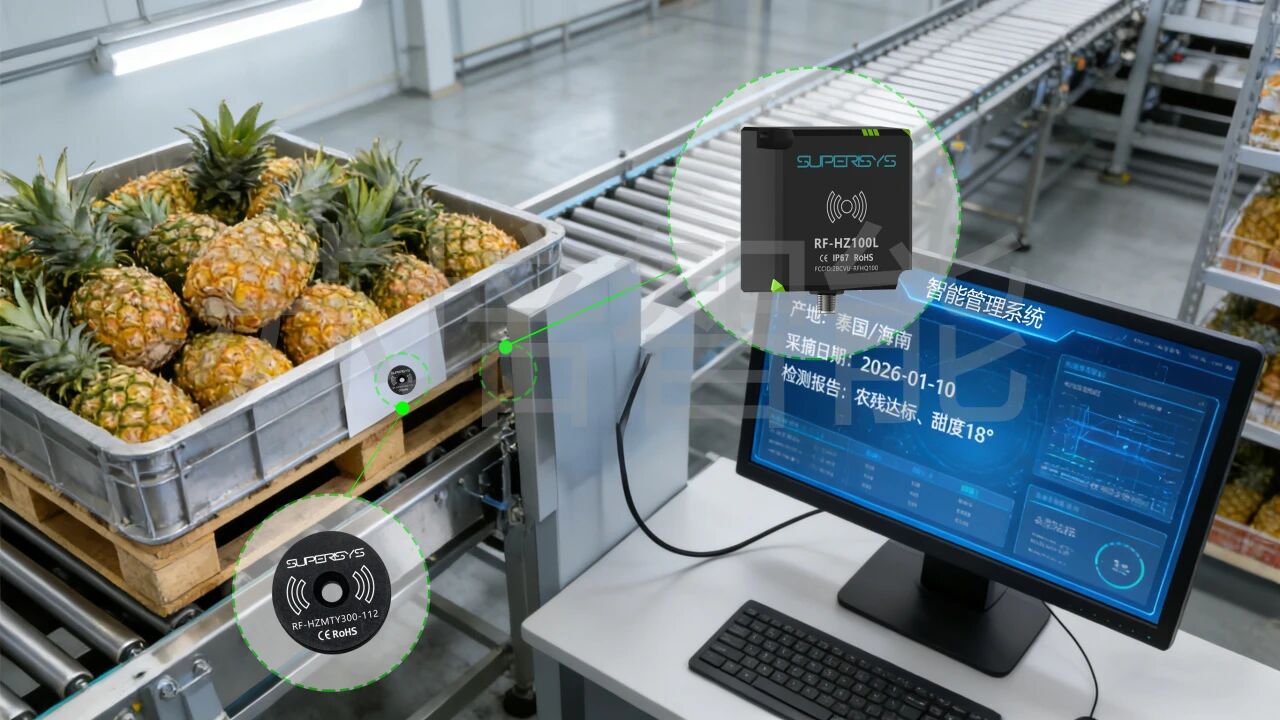

菠萝原料入库时，工作人员为每一批原料绑定 RF-HZMTY300-112 标签，录入产地、采摘日期、检测报告等信息。RF-HZ100L 读写器快速读取标签数据并上传至管理系统，形成原料专属档案。后续若发现质量问题，可通过标签快速定位问题批次，精准召回，避免大规模损失。

When pineapple raw materials are received into the warehouse, the staff attach an HF tag(RF-HZMTY300-112 ) to each batch of raw materials and record information such as origin, harvest date, and inspection reports. An RF-HZ100L reader quickly reads the tag data and uploads it to the management system, creating a unique file for each batch of raw materials. If quality problems are discovered later, the tag can be used to quickly locate the problematic batch, allowing for precise recall and preventing large-scale losses.

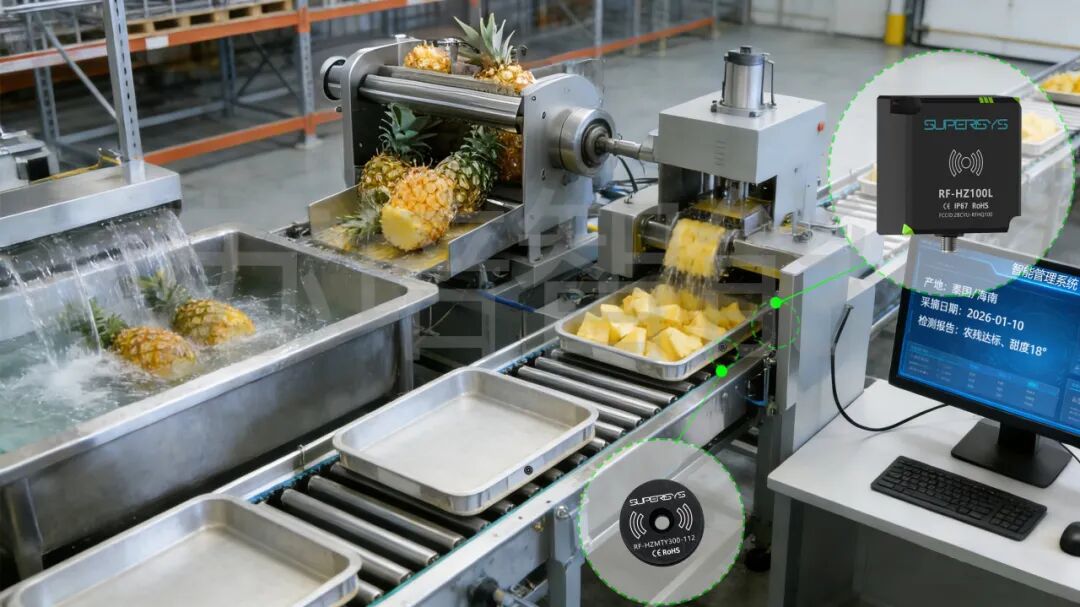

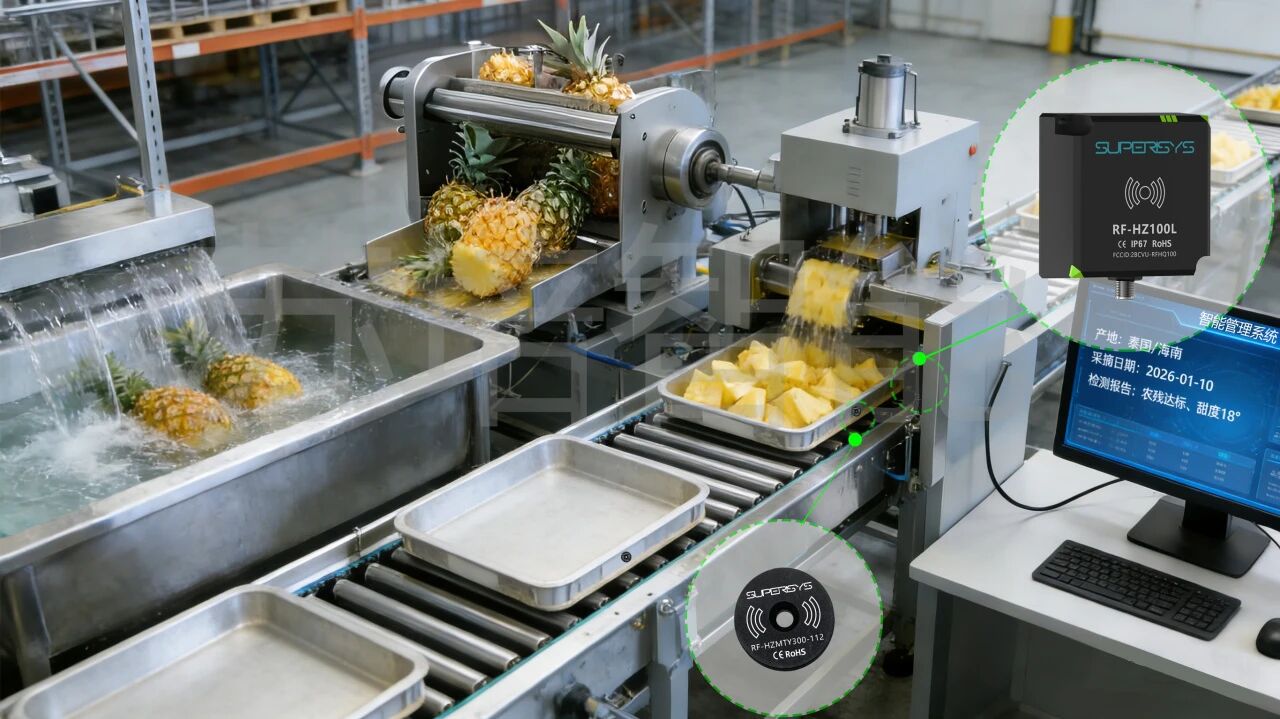

原料经清洗、去皮、切块等工序时，每个加工节点都部署 RF-HZ100L 读写器。当附着标签的原料筐经过读写器感应区域，系统自动记录工序完成时间、操作员工、设备参数等信息，无需人工手动录入，既减少了人为误差，又提高了流转效率，管理人员可实时查看生产进度，合理调配资源。

During the cleaning, peeling, and cutting processes of the raw materials, RF-HZ100L readers are deployed at each processing stage. When the raw material baskets with attached tags pass through the reader's sensing area, the system automatically records information such as the completion time of the process, the operating employee, and equipment parameters. This eliminates the need for manual data entry, reducing human error and improving workflow efficiency.  Management personnel can also monitor production progress in real time and allocate resources effectively.

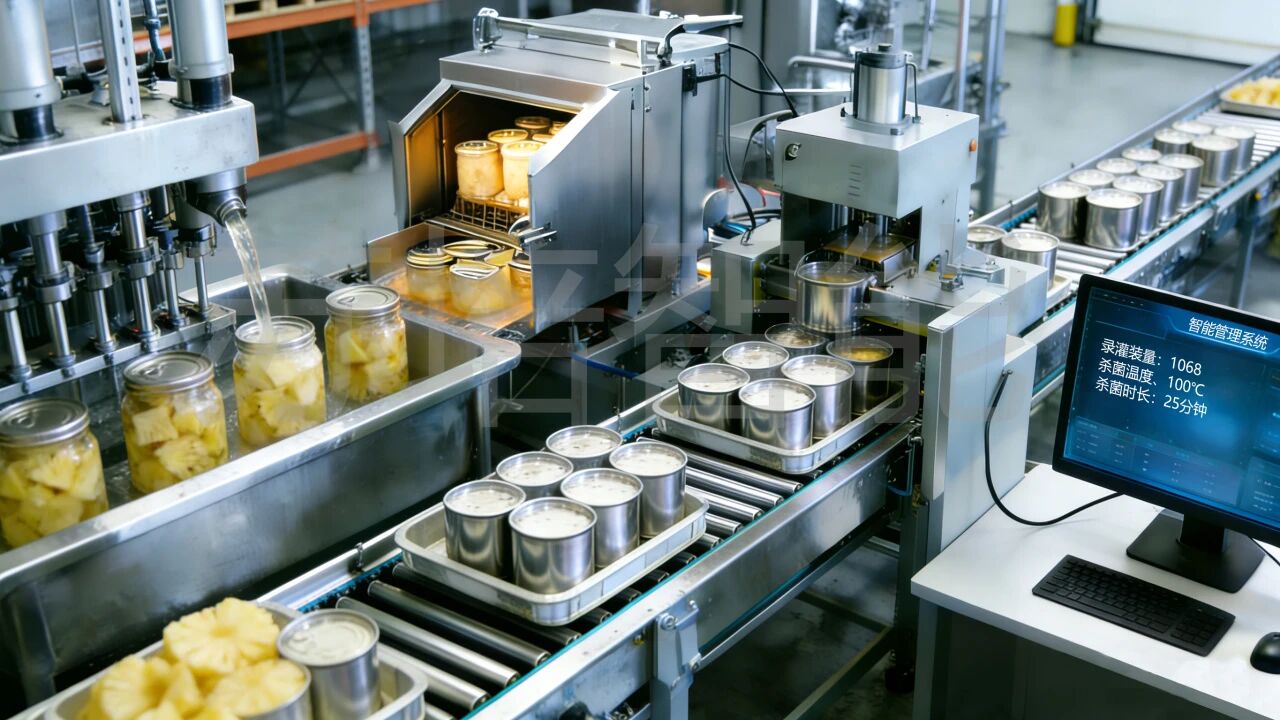

在灌装、杀菌等关键工序，RFID 标签可同步记录灌装量、杀菌温度、杀菌时长等核心参数。读写器将数据实时上传至系统，形成不可篡改的生产记录，确保每一批罐头都符合食品安全标准。若后续出现产品质量投诉，可通过标签追溯完整生产数据，快速排查问题原因。

During critical processes such as filling and sterilization, RFID tags can synchronously record core parameters such as filling volume, sterilization temperature, and sterilization time. The readers upload the data to the system in real time, creating an unalterable production record and ensuring that every batch of canned goods meets food safety standards. If product quality complaints arise later, the complete production data can be traced through the tags, allowing for quick identification of the root cause of the problem.

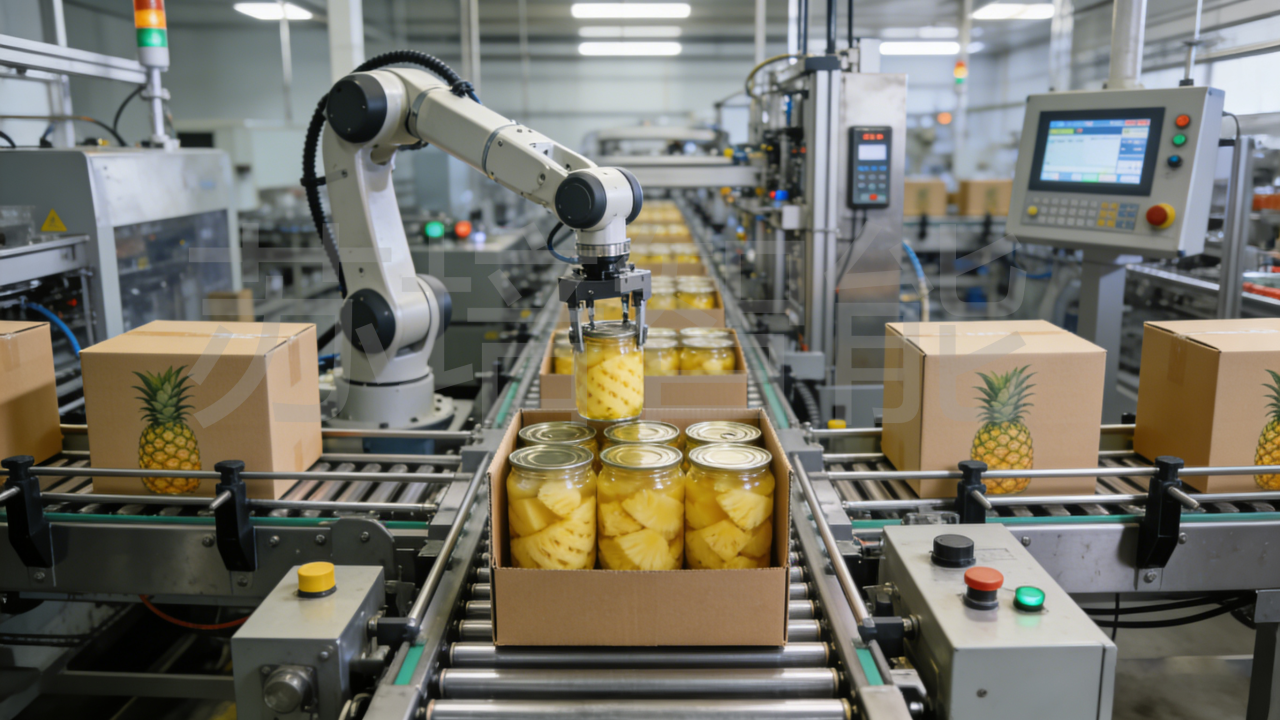

成品罐头装箱时，外箱标签与箱内产品标签关联，记录装箱数量、出库日期、目的地等信息。仓库出入口的高频RFID读写器 RF-HZ100L 可快速完成货物盘点与出入库登记，实现仓储数据实时更新，避免库存积压或短缺。物流过程中，也可通过 RFID 技术追踪货物位置，确保产品快速、安全送达。

When finished canned goods are packed into boxes, the outer box labels are linked to the product labels inside the box, recording information such as the quantity packed, the date of shipment, and the destination. High-frequency RFID readers (RF-HZ100L) at the warehouse entrance and exit can quickly complete inventory checks and record goods entering and leaving the warehouse, enabling real-time updates of warehousing data and preventing inventory buildup or shortages. During the logistics process, RFID technology can also be used to track the location of goods, ensuring fast and safe delivery of products.
